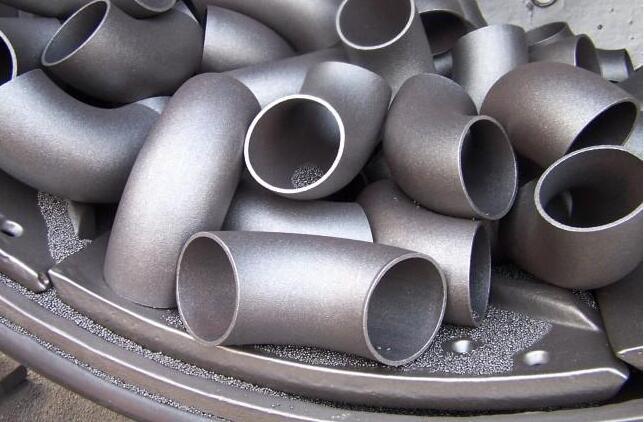

ELBOW

Butt Weld FittingsStandard:ANSI B16.9, ANSI B16.28, DIN 2605, DIN2615, DIN2616, JIS B2312, JIS B2313

Material:Carbon SteelASTM A 234 WPBStainless SteelASTM A403 WP304/304L, WP316/316L, WP321, WP347Alloy SteelASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Schedule:Carbon Steel & Alloy SteelSTD,SCH40, XS, XXS, SCH10-SCH160Stainless SteelSCH5S, 10S, 40S, 80S

Size:1/2”-48”

Type:45, 90, 180 Degree Long/Short Radius Elbows, Equal Tees, Reducing Tees, Equal Crosses, Reducing Crosses, Concentric Reducers, Eccentric Reducers, Caps, Barred TeesInduction Bend

:Size: 3”-48’’

Radius: 3D, 4D, 5D, 6D, 8D, 10D

Angels: 22.5Deg, 30Deg, 45Deg, 60Deg, 90Deg
